Descripción

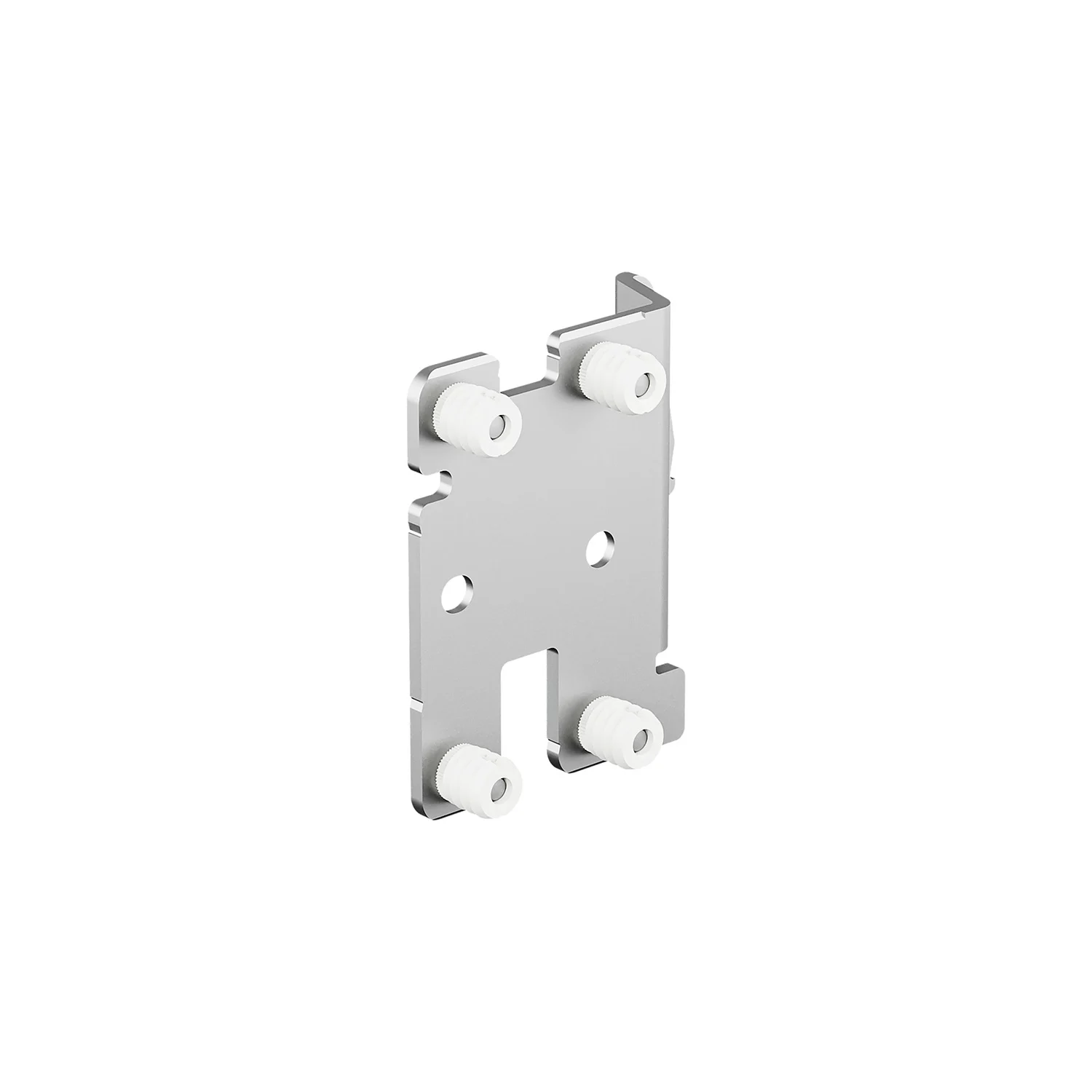

• Pieza módulo de montaje directo
• Apto para el montaje automático, montaje directo
• Apto para montaje manual, para insertar
• Capacidad de carga 110 kg/unidad conforme a DIN EN 15939 en el bastidor de prueba A
• Capacidad de carga 80 kg/unidad conforme a DIN EN 15939 en el bastidor de prueba B
• Capacidad de carga 50 kg/unidad conforme a DIN EN 15939 en el bastidor de prueba C
• No combinable con carriles para colgar
• Espesor admisible de la pared trasera 3 – 8 mm
• Se puede usar también sin trasera
• Acero cincado; completamente reciclable
Indicaciones:
• Aplicable con pieza mural SAH 500
• Las tapas opcionales deben pedirse por separado
Information on load capacity of cabinet suspension brackets and on accessories
The following basic loading principles must be observed when using cabinet suspension brackets and accessories:
• Both the furniture design and the quality of the furniture’s material and production are beyond our control.
• The quality and condition of the wall materials. as well as its general load bearing properties is also beyond our control.
• It is the fitter’s/customer’s responsibility to assess the wall and select suitable fixing hardware.
• The fixing screws must meet the following requirements: minimum strength class: 5.8; min. shaft diameter: 4 mm; flat head of at least 10 mm in diameter.
• Add on elements, such as end shelves, must not be fitted without separate suspension bracket.
• The cabinet maker / retailer is responsible for ensuring that the furniture marketed meets the latest requirements of local standards and guidelines, such as furniture standard EN 14749 applicable in Europe.
